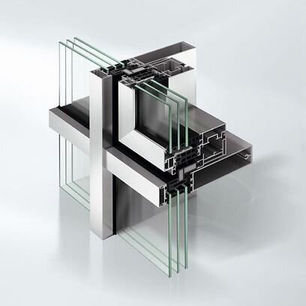

Achieve straightforward efficiency in fabrication, installation and operation with the thermally insulated Schüco Aluminum Window System AWS 114 insert unit and the Schüco AWS 114 SI window as parallel-opening (PAF) or projected top-hung awning (SK) window. The innovative window system with large vent dimensions can be integrated seamlessly without adversely affecting the uniform facade geometry – and all with vent weights in the motorized version of up to 550 lb (250 kg). The comprehensive glazing range enables custom-built solutions for requisite thermal insulation. Glass thicknesses from 15/16” to 1-3/4” (24 mm to 44 mm) can be used with the Schüco AWS 114 (SG) thermally insulated insert unit. Double and triple insulating glass with glass thicknesses from 1-1/8” to 2-1/16” (28 mm to 52 mm) can be integrated into the highly thermally insulated Schüco AWS 114 (SG.SI) system. Whether as an all-glass facade window with stepped insulation glazing (Schüco AWS 114 SG, Schüco AWS 114 SG.SI) or as a facade window with standard insulating glazing and a continuous glazing bead (Schüco AWS 114, Schüco AWS 114.SI) – the insert unit offers a diverse range of design options.
