minimal windows® NGS
Next-generation minimalistic sliding system
minimal windows® NGS enables a seamless transition between indoor and outdoor areas through barrier-free openings of entire window façades with heights of up to 6 meters and unlimited length options. Our expertise and continuous development over more than 15 years have enabled us to offer these customized solutions that provide maximum flexibility.
Our minimalist design allows for a harmonious combination of natural light and elegant aesthetics, promoting an inviting atmosphere for contemporary living. Light-flooded rooms with a maximum transparency of up to 99.3% create a unique, airy atmosphere in any home concept.
The advanced minimal windows® NGS system offers versatile design options, such as customizable glass thicknesses from 34 mm to 74 mm. The side profiles can be seamlessly integrated into walls, floors, and ceilings to make them virtually invisible. In addition, we offer motorization for opening and closing the sliding elements, which is capable of moving sash weights of up to 1,500 kg along the stainless steel track.
The possibilities offered by NGS provide limitless possibilities in the planning process and we are ready to turn your individual visions and requirements into reality.
Technical Details | |
|---|---|
Profile facing width | 26 mm | 1" 6 m | 236 3/16" |
Maximum leaf height | 6 m | 236 3/16" |
Maximum leaf area fix | up to 18 m² | 193.75 sqft |
Maximum leaf area sliding | up to 18 m² | 193.75 sqft |
Maximum leaf weight | 1,500 kg | 3306 lb |
Motorization | up to 2,400 kg total weight |
Air permeability | A3* |
Rain penetration resistance | 330 Pa* |
Burglary protection | up to RC3 |
Profile facing width
26 mm | 1" 6 m | 236 3/16"
Maximum leaf height
6 m | 236 3/16"
Maximum leaf area fix
up to 18 m² | 193.75 sqft
Maximum leaf area sliding
up to 18 m² | 193.75 sqft
Maximum leaf weight
1,500 kg | 3306 lb
Motorization
up to 2,400 kg total weight
Air permeability
A3*
Rain penetration resistance
330 Pa*
Burglary protection
up to RC3
Thermal transmission coefficient | Overall insulation glass thickness | |
|---|---|---|
NG S4 | U-Factor ≥ 0.16 Btu/h·ft2·F | Uw ≥ 0.90 W/m²K U-Factor ≥ 0.21 Btu/h·ft2·F | Uw ≥ 1.20 W/m²K | 34 up to 44 mm | 1 5/16" up to 1 3/4" |
NG S5 | U-Factor ≥ 0.13 Btu/h·ft2·F | Uw ≥ 0.75 W/m²K U-Factor ≥ 0.17 Btu/h·ft2·F | Uw ≥ 0.95 W/m²K | 44 up to 54 mm | 1 3/4" up to 2 1/8" |
NG S6 | U-Factor ≥ 0.16 Btu/h·ft2·F | Uw ≥ 0.90 W/m²K U-Factor ≥ 0.11 Btu/h·ft2·F | Uw ≥ 0.65 W/m²K | 54 up to 64mm | 2 1/8" up to 2 1/2" |
NG S4
Thermal transmission coefficient
U-Factor ≥ 0.16 Btu/h·ft2·F | Uw ≥ 0.90 W/m²K
U-Factor ≥ 0.21 Btu/h·ft2·F | Uw ≥ 1.20 W/m²K
Overall insulation glass thickness
34 up to 44 mm | 1 5/16" up to 1 3/4"
NG S5
Thermal transmission coefficient
U-Factor ≥ 0.13 Btu/h·ft2·F | Uw ≥ 0.75 W/m²K
U-Factor ≥ 0.17 Btu/h·ft2·F | Uw ≥ 0.95 W/m²K
Overall insulation glass thickness
44 up to 54 mm | 1 3/4" up to 2 1/8"
NG S6
Thermal transmission coefficient
U-Factor ≥ 0.16 Btu/h·ft2·F | Uw ≥ 0.90 W/m²K
U-Factor ≥ 0.11 Btu/h·ft2·F | Uw ≥ 0.65 W/m²K
Overall insulation glass thickness
54 up to 64mm | 2 1/8" up to 2 1/2"

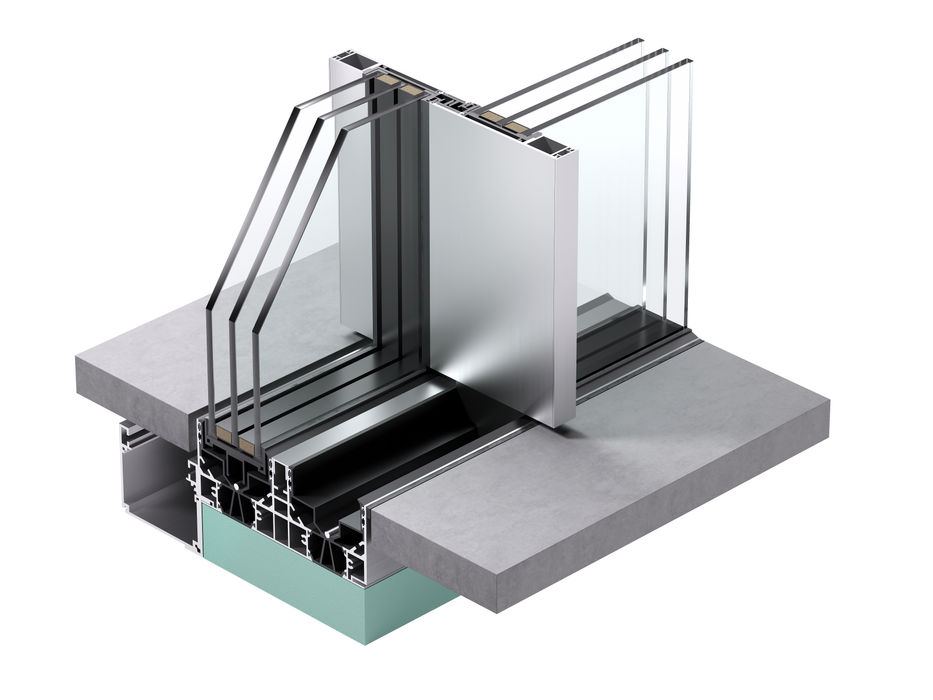

Flush Installation
The outer frame blends seamlessly into walls, ceilings and floors and provides a flush finish. This design enables a smooth transition between indoor and outdoor areas without steps. Our frame profile, which is installed flush with the floor, guarantees an elegant appearance.
Threshold-Free Transition
The flush-mounted minimal windows® freeway track provides a threshold-free passage to the outside, making it fully accessible. The outer frame is fully integrated into the floor, so the track is level with the floor, eliminating any obstacles to trip over. The freeway system is tested, certified, and maintenance-free.
Security
Our systems are equipped with multi-point locking, providing excellent burglary protection. They are certified according to standards for burglar-resistant components and meet resistance class RC 2.
Stainless steel track and rollers
Our stainless steel track is fully integrated into the lower edge of the outer frame and ensures optimum running properties and silent operation of the sliding elements. The track and rollers are perfectly matched and offer stability and effortless operation for sliding elements weighing up to 500 kg (1000 kg 4+, 1500 kg NGS).
Drainage
Our system features a PVC cavity profile installed underneath the lower aluminum frame profile for effective drainage. Alternatively, you can opt for a concealed drainage channel with a stainless steel cover for a minimalist look. Whichever minimal windows® system or combination you choose, we will customize the drainage system to suit your needs.
